Investigating Corrupt/Malicious PDF Document
Author: Ayush Anand



See Also



Contents


Introduction
Today, I will show you how to analyze and troubelshoot a corrupted or malicious PDF document. In this exercise I will be using sample PDF file for illustration purposes which you can download from here [Reference 2]. Before proceeding further, it is highly recommended that you to read this article 'PDF Overview - Peering into the Internals of PDF' [Reference 1] for better understanding of internal structure and components of PDF.

This article will help you get better understanding of inner working and flow of PDF file assisting you in the PDF Malware Analysis or any research work revolving around PDF.



Requirements
Before we get our hands dirty, we need to have following tools
  1. Acrobat Reader
  2. Notepad++ or any other text editor
Starting Corrupted PDF

Now download the sample document 'multipages.pdf' [References 2] and open it in the PDF reader.

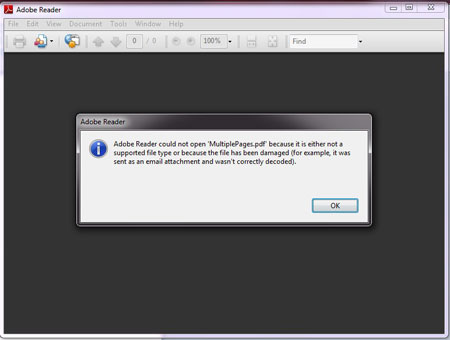

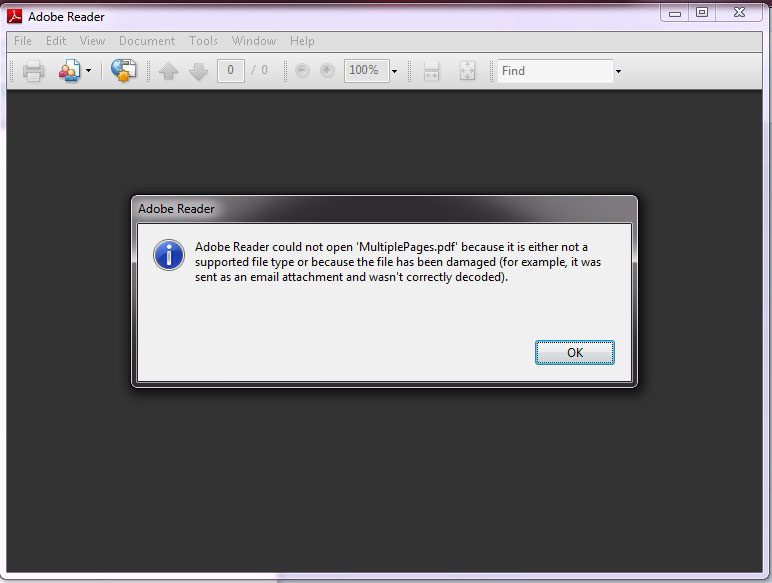

On launching you will see following error

pdf error



Tracing and Fixing the Error in PDF

Lets start the investigation as to see what went wrong with this PDF document.

To get inside view, open this corrupt PDF file in Notepad++.  You will see the contents as shown below


1 0 obj

<<

        /Pages 2 0 R

        /Type /Catalog

>>

endobj

2 0 obj

<<

        /Count 2

        /Kids [ 3 0 R 5 0 R 7 0 R 9 0 R 11 0 R ]

        /Type /Pages

>>

endobj

3 0 obj

<<

        /MediaBox [ 0 0 795 842 ]

        /Parent 2 0 R

        /Contents 4 0 R

        /Resources <<

               /Font <<

                       /F1 <<

                               /Name /F1

                               /BaseFont /Helvetica

                               /Subtype /Type1

                               /Type /Font

                       >>

               >>

        >>

        /Type /Page

>>

endobj

4 0 obj

<<

        /Length 55

>>stream

BT

/F1 18 Tf

186 690 Td

20 TL

(www.secsavvy.com) Tj

ET



endstream

endobj

5 0 obj

<<

        /MediaBox [ 0 0 795 842 ]

        /Parent 2 0 R

        /Contents 6 0 R

        /Resources <<

               /Font <<

                       /F1 <<

                               /Name /F1

                               /BaseFont /Helvetica

                               /Subtype /Type1

                               /Type /Font

                       >>

               >>

        >>

        /Type /Page

>>

endobj

6 0 obj

<<

        /Length 45

>>stream

BT

/F1 15 Tf

186 690 Td

20 TL

(Page 1) Tj

ET



endstream

endobj

7 0 obj

<<

        /MediaBox [ 0 0 795 842 ]

        /Parent 2 0 R

        /Contents 8 0 R

        /Resources <<

               /Font <<

                       /F1 <<

                               /Name /F1

                               /BaseFont /Helvetica

                               /Subtype /Type1

                               /Type /Font

                       >>

               >>

        >>

        /Type /Page

>>

endobj

8 0 obj

<<

        /Length 45

>>stream

BT

/F1 15 Tf

186 690 Td

20 TL

(Page 2) Tj

ET



endstream

endobj

9 0 obj

<<

        /MediaBox [ 0 0 795 842 ]

        /Parent 2 0 R

        /Contents 10 0 R

        /Resources <<

               /Font <<

                       /F1 <<

                               /Name /F1

                               /BaseFont /Helvetica

                               /Subtype /Type1

                               /Type /Font

                       >>

               >>

        >>

        /Type /Page

>>

endobj

10 0 obj

<<

        /Length 45

>>stream

BT

/F1 15 Tf

186 690 Td

20 TL

(Page 3) Tj

ET



endstream

endobj

11 0 obj

<<

        /MediaBox [ 0 0 795 842 ]

        /Parent 2 0 R

        /Content 12 0 R

        /Resources <<

               /Font <<

                       /F1 <<

                               /Name /F1

                               /BaseFont /Helvetica

                               /Subtype /Type1

                               /Type /Font

                       >>

               >>

        >>

        /Type /Page

>>

endobj

12 0 obj

<<

        /Length 47

>>stream

BT

/F1 15 Tf

186 690 Td

20 TL

(Password) Tj

ET



endstream

endobj

xref

0 13

0000000000 65535 f

0000000010 00000 n

0000000067 00000 n

0000000161 00000 n

0000000398 00000 n

0000000510 00000 n

0000000747 00000 n

0000000849 00000 n

0000001086 00000 n

0000001188 00000 n

0000001426 00000 n

0000001529 00000 n

0000001768 00000 n

trailer

<<

        /Root 1 0 R

        /Size 13

>>

startxref

1873

%%EOF


PDF file consists of 4 elements:
  1. PDF header identifying the PDF specification.
  2. A body containing the objects that make up the document contained in the file
  3. A cross-reference table containing information about the indirect objects in the file
  4. A trailer giving the location of the cross-reference table and of certain special objects within the body of the file.
But here if you observe closely,  there is no header so we will add a PDF header and try to open this PDF.

%PDF-1.7

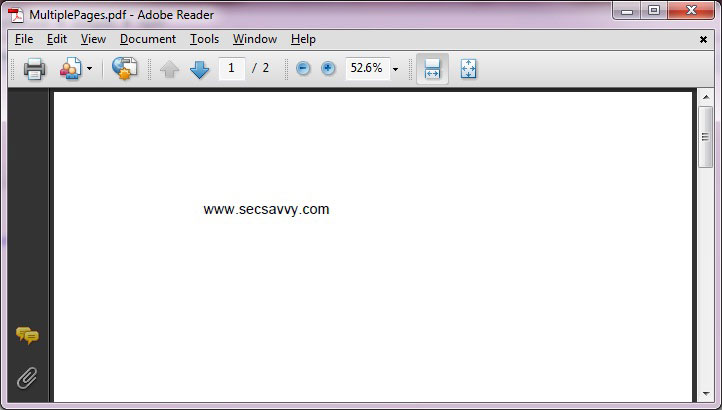

Lets add this missing header info at the beginning of the file. Now you can open it open it without problem as shown below.

pdf error

Well that's good, but everything is not right. From the above picture you can see that it has total of 2 pictures. Lets investigate further.

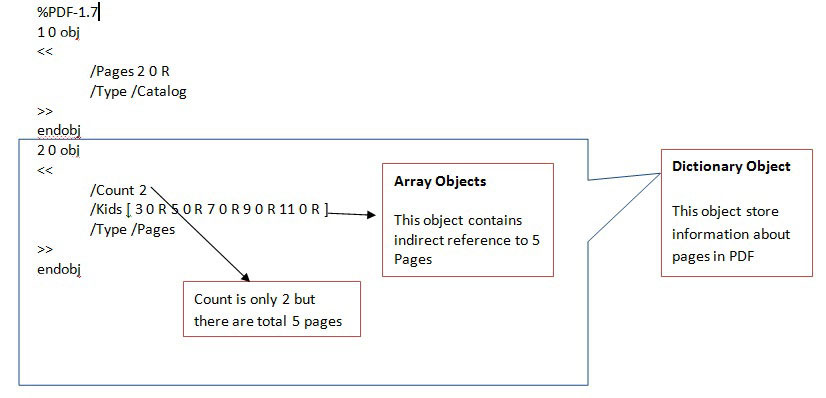

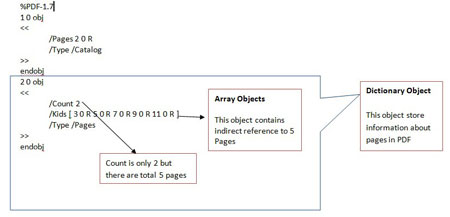

Here is the screenshot showing the brief analysis of page-linking structure of this PDF file

pdf error

Now, we are able to find that this PDF has actually total 5 pages so edit the Count from 2 to 5 and open this PDF as shown below.

%PDF-1.7
1 0 obj
<<
/Pages 2 0 R
/Type /Catalog
>>
endobj
2 0 obj
<<
/Count 5
/Kids [ 3 0 R 5 0 R 7 0 R 9 0 R 11 0 R ]
/Type /Pages
>>
endobj

Now, we are able to see all 5 pages but last page is blank so we will investigate further.

Last page is in fact pointed by 11 0 R indirect object reference clear from the code snippet below

11 0 obj
<<
/MediaBox [ 0 0 795 842 ]
/Parent 2 0 R
/Content 12 0 R
/Resources <<
/Font <<
/F1 <<
/Name /F1
/BaseFont /Helvetica
/Subtype /Type1
/Type /Font
>>
>>
>>
/Type /Page
>>
endobj

In PDF, 'Contents' keyword is used for describing the contents of a file . If this entry is absent then the page is empty.

But here object number 12 Contents is written as 'Content' (note the missing 's' at the end). Hence the PDF reader is unable to recognize the name Content so it ignores the Content without giving any error.

To fix this, simply replace Content with Contents and open the PDF. Now you will be able to see all five pages.

You can download this fixed PDF 'MultiplePages_Fixed' [Reference 2] and test it for yourself.



Video Demonstration

Here is the video demonstration of this entire analysis and fixing process.




Reference

  1. PDF Overview - Peering into the Internals of PDF
  2. Download Sample PDF File
  3. PDF resources on Didier Stevens Blog


Conclusion

IHope you enjoyed this article and also got to know more about working flow of PDF document.

f you are more interested to read about PDF then I recommend you to visit excellent bog of Didier Stevens [Reference 3]
